Metal Electrical cutter for cutting metal from coil to small pieces

Product Details

Metal Electrical cutter for cutting metal from coil to small pieces, it could be used to cut metal from 0.2 to 6mm thickness to small pieces by manul feeding coil and manual receiving coil.
If you use this machine together with decoiler, it can work automatically. For the cutter, we take 4-pieces blade style and the material is 9CrSi, this material is very good, it also could be used to cut stainless steel.

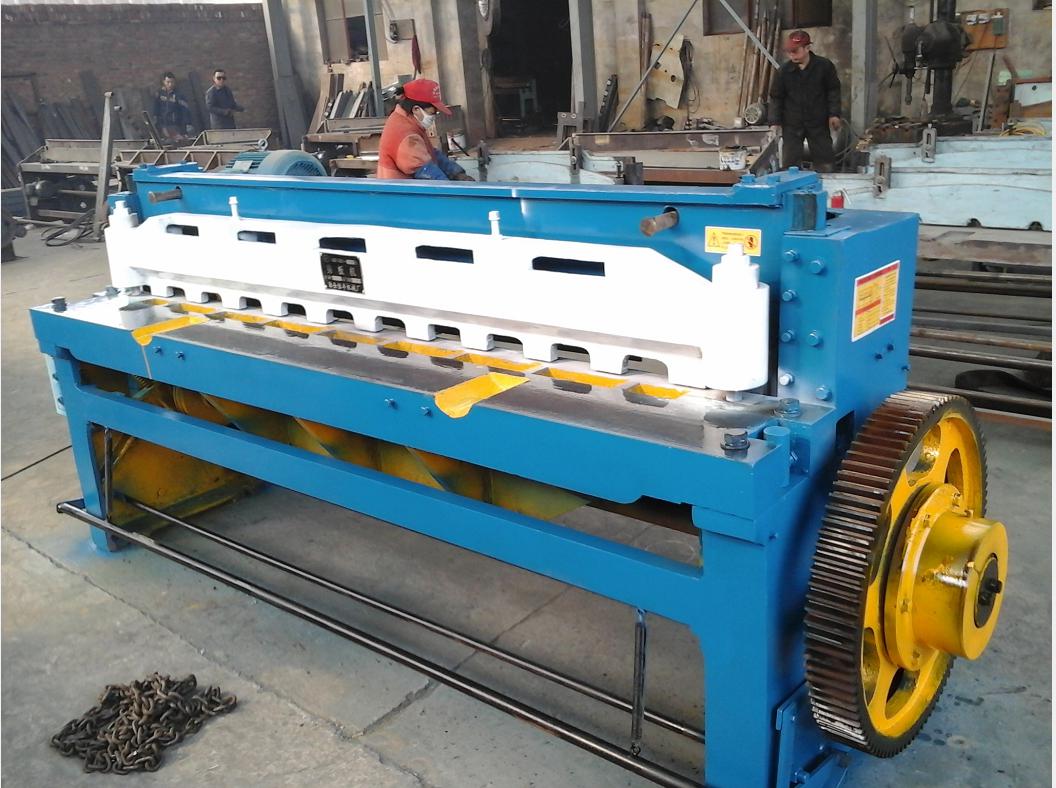

Here are some machine pictures for your reference:

Metal Electrical cutter for cutting metal from coil to small pieces
Metal Electrical cutter for cutting metal from coil to small pieces
For this type manual shearing machine, based on the function and the thickness & coil width difference and then the price will be different. Take a random thickness Metal Electrical cutter for example to show you some basic parameters:

Parameters/size Unit 2X2000mm 2X2500mm 3X2100mm 3X2600mm 5X2600mm
Max thickness MM 2 2 3 3 5
Max width MM 2000 2500 2100 2600 2600
Shearing angle ° 1°30′ 1°30′ 1°30′ 1°30′
Max back iron distance MM 350 350 500 500 500
Shearing times time/min 50 50 40 40 35
Main power KW 3 3 5.5 5.5 7.5
Blade material 9CrSi 9CrSi 9CrSi 9CrSi 9CrSi
Mold shearing blade quantity 4 4 4 4 4
Machine size Length 3000 3500 3200 3700 3760
Width 1200 1200 1600 1510 1110
Height 1200 1200 1400 1440 1610
Machine weight KG 1400 1600 2600 3200 4800

For this machine, if you want to know more information, please contact us at any time.
