MCB Channel Roll Forming Machine

MCB Channel Roll Forming Machine

De coiler 1 ton cap.
Entry Gate with

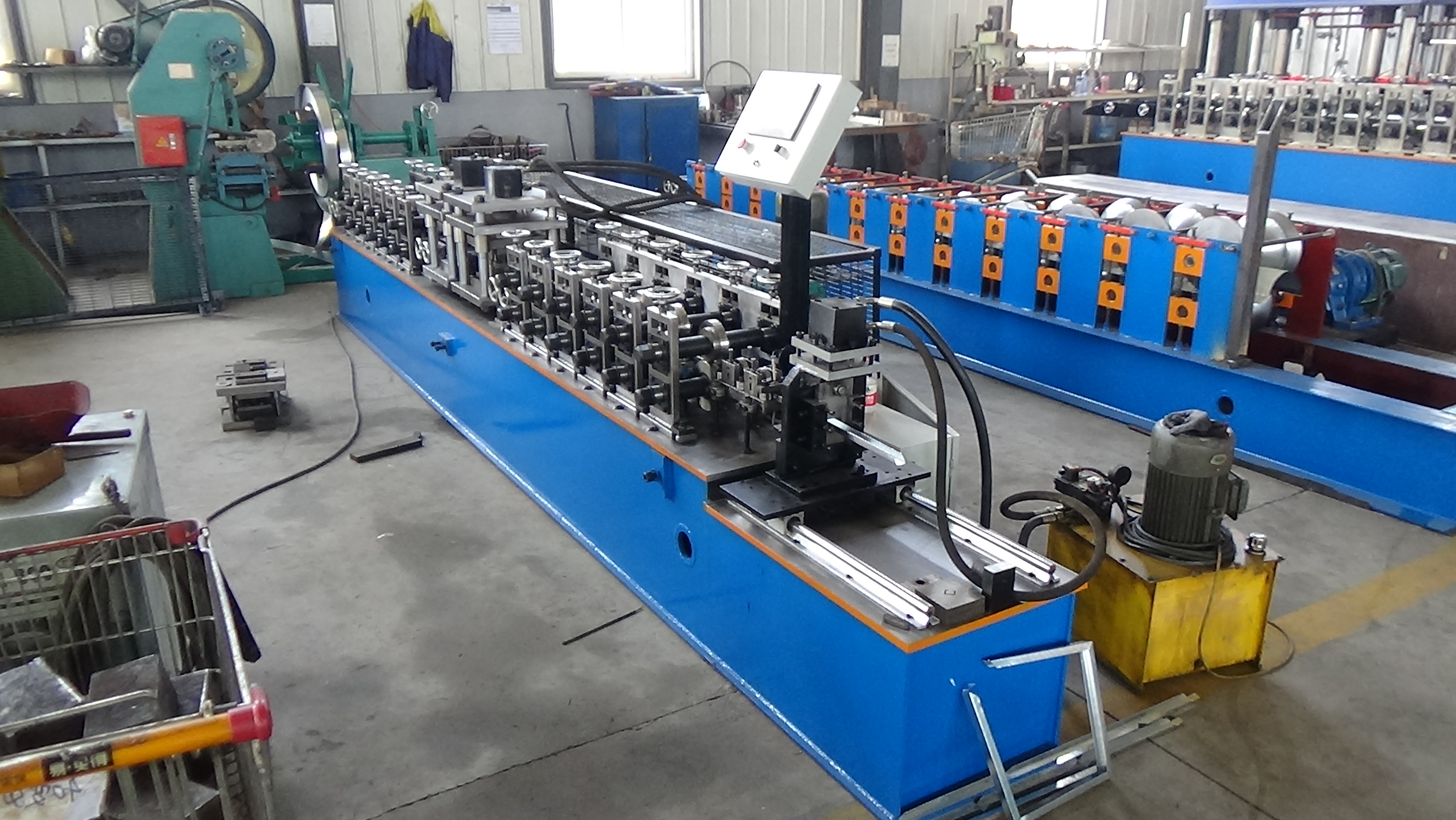

Roll Forming Line with 9 station , 1 Gear Boxes & 2 H.P. electrical.
Control Panel semi auto
Cutting Unit
Technical Specifications : (Plate body)
Maximum sheet width that can be formed : 55mm
Maximum sheet thickness in CRCA Strips that can be formed : 1 mm
Vertical distance between shafts : 80 mm
Horizontal distance between shafts : 175mm
Number of forming stations : 9 nos.
Vertical station : 7 nos.
Total HP for Line : 3(ABB)
Speed of the machine : 4mt/minute
Size of machine : 1600 x 800 x 1100 mm
Mandrel Uncoiler
Coil weight : 1 MT Max
Coil width : 90 MM
Coil bore : 450 MM min, 510 MM max dia.
Mandrel movement : Manually adjusted
Back Tension : Manually adjusted

Trapezoid Roll Forming Machine
Entry Gate
Entry gate will be provided for movement of sheet to roll former.
Main Base
The main base is MS fabricated structure and adequately ribbed to minimize the distortion. It is accurately machined on top and bottom surfaces the threaded holes are made on the bed for positioning the stands.
Mill stands (Station)
The stands are mounted on the bed of the machine the line alignment can be easily done due to guide ways arranged on the bed of the machine. Each forming head consists of a fixed housing and sliding type out board housing. The mill stands will be arranged to locate shafts mounted on taper bearings. For the top shafts the bearings are housed in the cartridge type bearing blocks. The bottom shaft bearings are located in the bored machined in the housings. The bottom arbors are fixed in position whereas the top arbors along with cartridge blocks could be raised or lowered in vertical guides machined in housings.
Roll shafts
The roll shafts dia. 40mm will be manufactured from quality steel and will be keyed to locate tooling.

IMG_0059
Drive
The drive to the roll former will be by means of a gear box system. The main drive will be provided by means of 2 HP motor
Tooling
One set of Tooling with EN31 grade will be from imported material suitable for your machine as standard supply. The same is involved in operations like rough machining, keyway, rough profiling, bore grinding, profile machining and inspection with final template for above.
Cutting Unit
Hydro. press 10 tone
