50/70/100 Light keel Roll Forming Machine

50/70/100 Light keel Roll Forming Machine

50/70/100 light keel roll forming machine could be used to make stud and track by one mahine. 50-70-100 is also named as 50-75-100, they are all C stud or  U track in those three sizes. All those sizes can sastify your needs to build ceiling or drywall participation. Here are some drawing profiles for your reference:

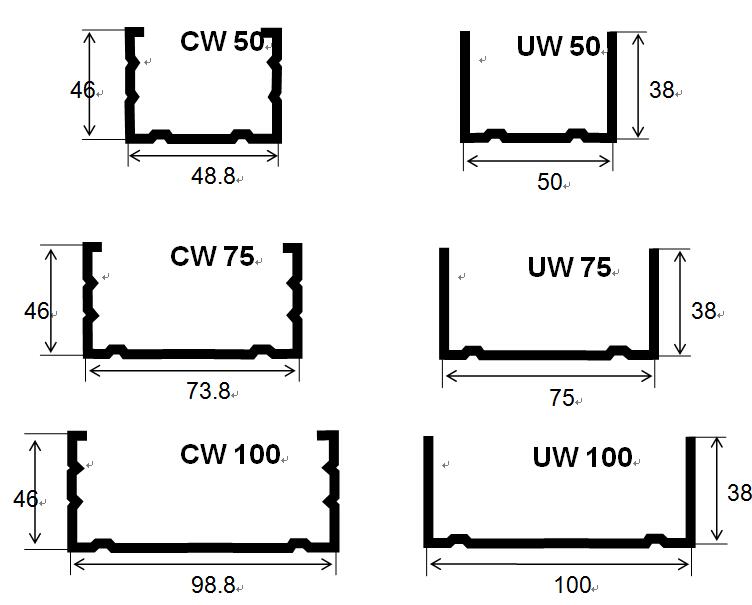

drywall profiles

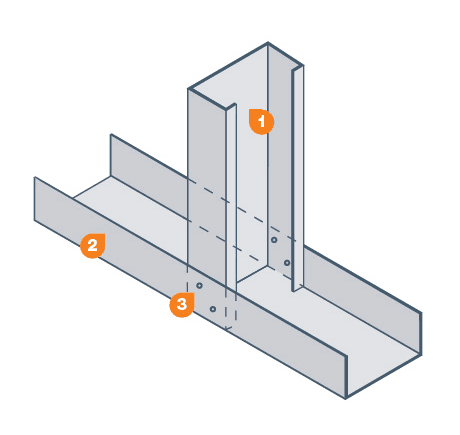

How to use 50/70/100 light keel?

c stud and u track

50/70/100 light keel roll forming machine parameters for your reference:

1).Shaft material:45# steel,outer diameter:50mm

2). Roller material:GCR12Mov

3).Number of forming steps:11steps

4).Main electrical machinery power: 5.5 KW

5).Forming speed: 25m/min

6).Transport:by gear

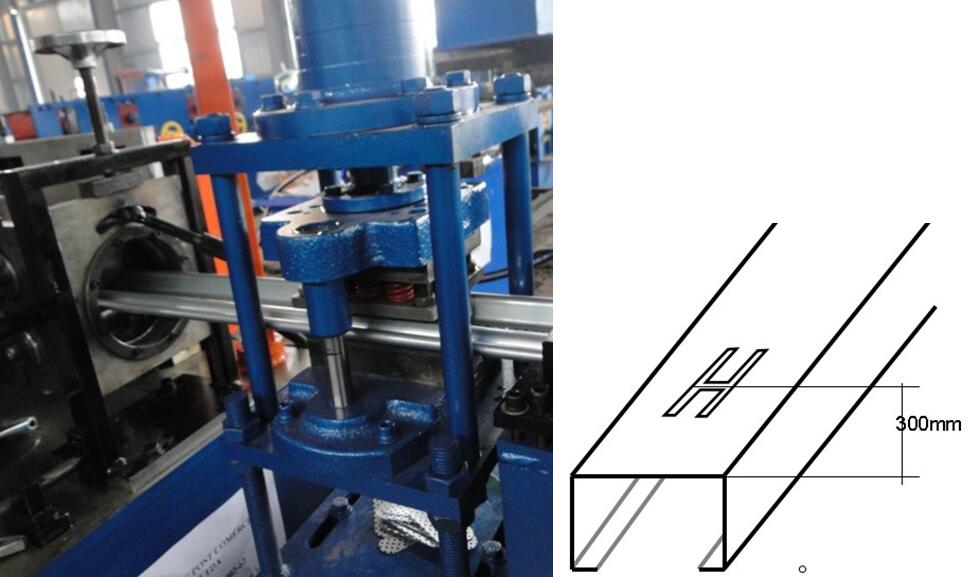

Here are the light keel roll forming machine pictures for your reference:

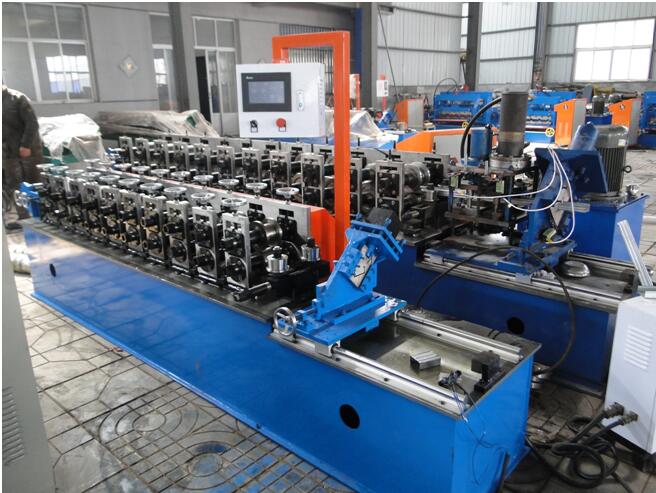

light keel roll forming machine

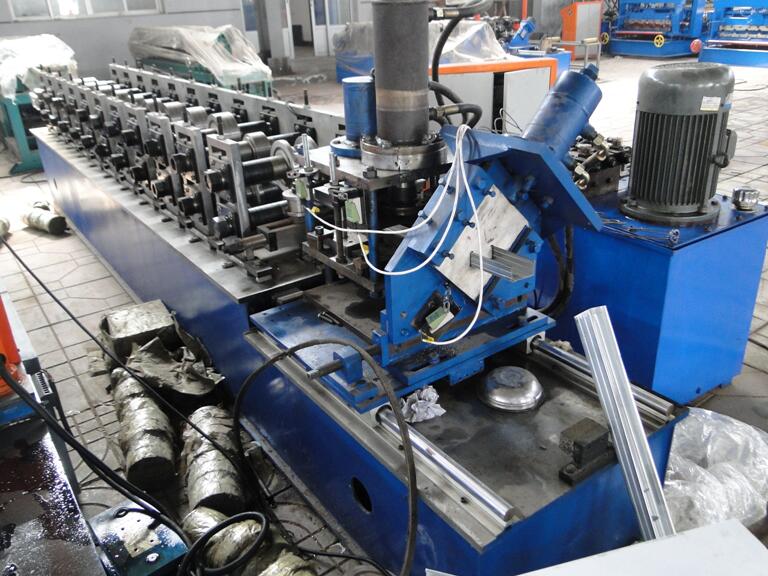

keel roll forming machine

light keel roll forming machine

For this machine, if you need to know more, please contact whattsapp 00861512755788 or email to cnzt002@zhongtuocn.com. In addition, if you want to know more information about other roll forming machines, please feel free to send your requirements to us.
