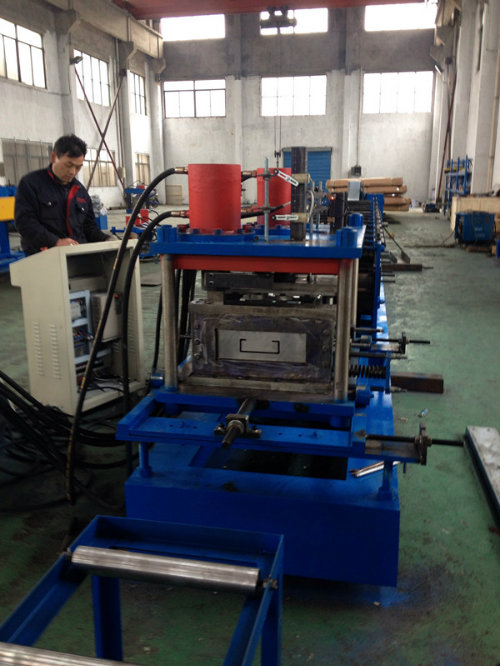

C Section Steel Purlin Cold Roll Forming Machine

C Section Steel Purlin Cold Roll Forming Machine

Technical Parameter
1. Products specification: C80-300. thickness: 2-3mm. Yield strength: 250Mpa max.
2. Running speed: 0-12m/min.
3. Main shaft material: 45# steel, Q&T treatment
4. Main axis diameter: ¢75mm
5. Roller material: GCr15 bearing steel, Qunching heat treatment, surface black finish.
Rigidity:HRC58-62.
6. Roller groups: 15 groups main rollers
7. Levelling roller: 7 rollers levelling device
8. Main motor power: 11KW;
9. Hydraulic station motor power: 5.5KW
10. Punching station: 2 punch device
11. Electrical control system: Whole line adopted PLC control, Panasonic PLC.
12. Cutting method: Hydraulic powered, automatically cut to length after roll forming
13. Cutting mold material: Cr12 quenching treatment
14. Uncoiling: by 5T Manual uncoiler
15. Drive way: 1.5 inch double chain
16. Machine dimension: 8m L X 0.88 m W X 1.0 m H
17. Machine weight: about 8 tons.


Technological process
Uncoiling - infeed guiding &levelling -rollforming - cutting to length - out put product
Delivery time
45 days after deposit
Payment terms
30% TT in advance, belance after successful commissioning and before delivery
Package
Sea worthy packing, film with steel
Warranty
1) one year after commissioning
2) whole life technical support
3) 24 hours after-sales service
