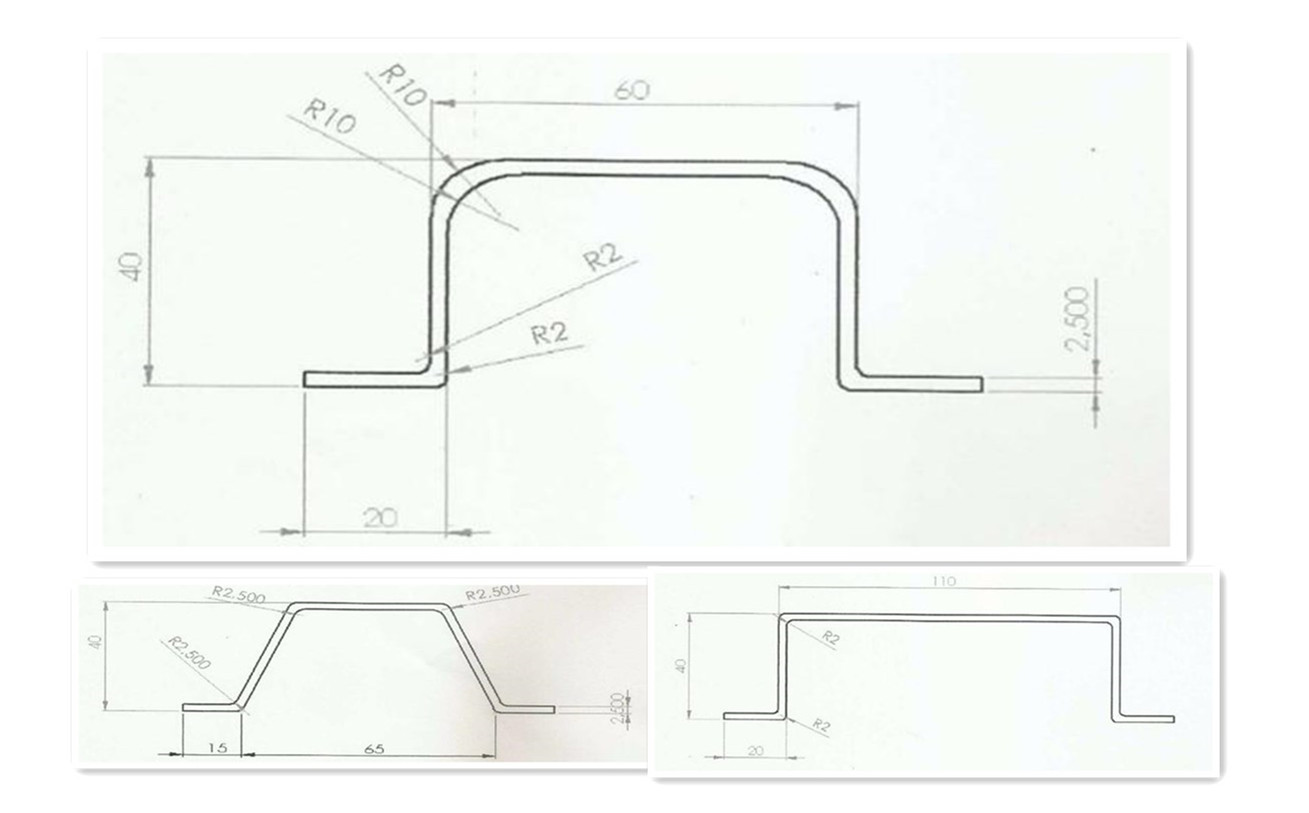

For the Furring Roll Forming Machine, Because the different size and shape between those three drawings, we will design one machine with three moulds . Meanwhile we will design three different mould to confirm the different R degree. Whats more, we will design the machine with memorial arch frame. It will easy adjust and change the mould for customer.
For other side, to confirm the machine strong enough to hold on 2.5mm thick black iron material, we will process Gcr12 mov for the rolls and blade, and we also use the differential gear for transmission.
Thickness: 2.5mm
Material: Black iron
The unit of size is millimeter.

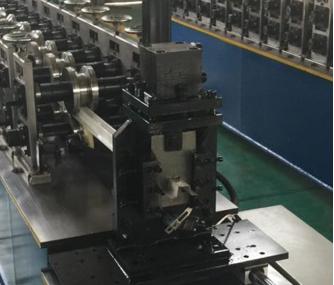

Furring Roll Forming Machine

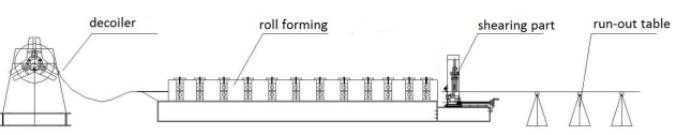

1.Processing flow diagram of machine

Manual decoiler→ Feeding material into machine →Roll forming machine →Hydraulic cutting → Finished Products

Processing flow diagram of machine
3. Technical parameters

Configurations manual decoiler, main machine of roll forming, cutting part, electric motor,hydraulic station,Delta PLC control system, run out table
Material Raw material Black iron
Thickness 2.5mm
Material hardness: 550 MPA---350 MPA
Manualdecoiler Inner Diameter:450-550mm Expand by manual
Max Coil width:300mm
Capacity: 3T
Main Formingmachine Forming steps 12stations
Shaft diameter 60mm
Design type middle plate welded,Memorial arch frame type
Frame thickness 25mm
roller material GCr12MoV
shaft material 45# steel with tempering
Work speed 5-15m/min
Transport Differential gear
Power of main machine 15 kw
Hydrauliccutting

system

Power supply Hydraulic station
Blade mould material GCr12MoV
no distorting or wasting. High level safety factor.
Hydraulicsystem Hydraulic oil 46#
Power 5.5kw
Cutting length As required
No distorting or wasting. High level safety factor.
Control Device control By PLC
PLC language English and Chinese (or as required)
Screen Touch screen
Function Automatic length and quantity measurement


Other

Spare part

Weight About 9 ton
Dimension 6800*1800*1400mm  L*W*H
Main body color As you need
Voltage 380V/50HZ3Phase(as customer’s request)
Spare cutting blade One piece per drawing
Fuse 2 pieces
Relay 2 pieces
Travel switch 2 pieces
Solenoid valve 1 pieces
Terms of payment 1.Terms of payment: 30%T/T ,Balance to be paid before shipping after inspection.2.Deliver time: 45 working days.
Warranty and Training 1. Warranty: Support the technology all the life. And the machine broken becauseof quality, we can change the broken part for free within one year.

2. Training: If you come to our factory,we can teach you for free.

If you need technician go foreign, the buyer need pay the cost for visa, hotel,

ticket, food and others, and buyer need pay the technician USD50/day for salary.

There need one technician. Training time will be one week.
