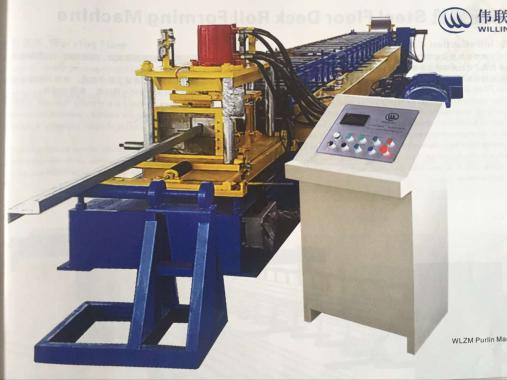

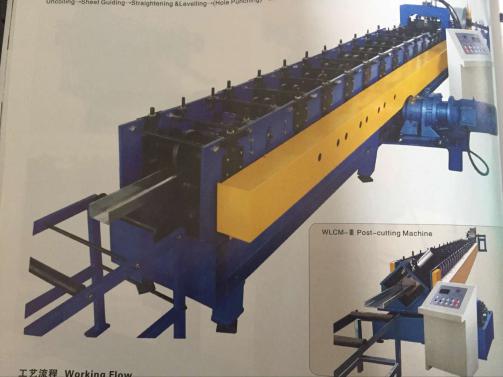

Steel Purlin Roll Forming Machine
C,Z&M shape purlins are made from hot/cold rolled steel strips,and straightened,hole punched,cot to length,and roll formed by WLFM series steel purlin roll forming machine,Through changing spacing sleeves,the machine can change different types/sizes of purlin.
WLPF series steel purlin roll forming machine consists of uncoiling system,straightening systems,hole punching system,shearing system,roll forming system,products support table,hydraulic system,automatic controlling system,and so on. our company has dozens of profile models for this series roll forming machine. We can design different kinds of profile and fittings for purlin machine, as per customers’requirements.

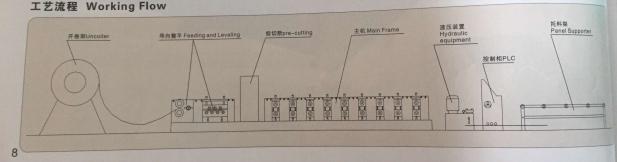

Working Flow
Uncoiling-Sheet Guiding-Straightening&Leveling-Hole Punching-Measuring Length&Shearing -Roll Forming-Sheet to Support Table
Main Technical Parameters
| Model | WLPF | ||
| Profile | C purline | Z purline | |
| (mm) | 100-250 | ||
| Material | Type | steel strip | |
| Thickness | 1.5-3.0 | ||
| Yield Stress | 230-300 | ||
| Max.Forming Speed | 10-16 | ||
| Roller Material | Bearing steel | ||
| Roller driven type | Chain transmission | ||
| Controller | PLC | ||
| Operation | Touch screen and button | ||
| Hydraulic system pressure | 20 | ||
| Hydraulic station motor power | 5.5 | ||
| Main motor power(kw) | 18.5-22 | ||
| Total power | 24-27.5 | ||
| Total weight | about 10000 | ||
