Louvers/curtain type fire damper roll forming machine
Louvers/curtain type fire damper roll forming machine Louvers/curtain type fire damper roll forming machine Louvers/curtain type fire damper roll forming machine Louvers/curtain type fire damper roll forming machine Louvers/curtain type fire damper roll forming machine

Louvers/curtain type fire damper roll forming machine

1006

The function of a Louvers/curtain Fire Damper is to close automatically upon detection of heat, in order to protect the integrity of a fire CAD Forum – Block External Curtain type Fire Damper. And the Louvers/curtain type fire damper roll forming machine could be used to make the curtain type fire damper in batch by roll forming principle. From the decoiler to roll forming and then shearing, all are full automatic, no need person to interface the work. The working speed could reach 20m/min.

The fire damper roll forming machine working process:

Decoiler leveling system roll forming machine shearing system runout table

The drawing profile of curtain type fire damper:

Louvers/curtain type fire damper roll forming machine_profile
Louvers/curtain type fire damper roll forming machine_finished products
The curtain type fire damper roll forming machine is composed by the following elements:
No. Item Description
1 Decoiler 3 Ton manual version, inner diameter: 450-550mm
Max coil width: 300mm
2 Leveling beach Entry leveling and punching dots if you need.
This part will level coil to make sure it is neat clean and straight.

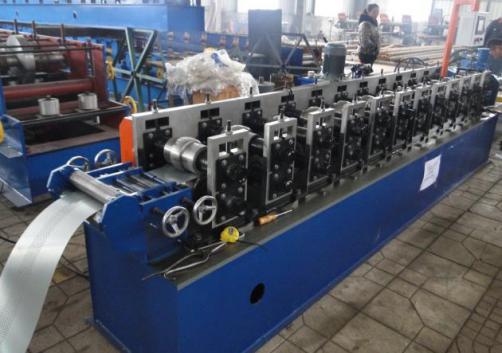

3 Main roll forming machine a. Number of forming steps: 12 stations
B. Shaft material: 45# steel with quenched treatment, precision machined,
The diameter: ¢50mm
c. Roller material: Cr15Mov with quenched treatment
d.Transport: by gear
e. Forming speed: 8-10m/min
f. Motor: 4kw
g. Voltage: 380v, 50Hz,3 phase
h. Structure: independent stand
i. Size of machine: 4.5m *0.8m *1.2m
j. weight:1.8T
Motor brand: China famous brand Mengniu
4 Shearing system Two options:Hydraulic shearing
                    Disk shearing, note: checking difference below
Basic parameters: The material of blade: Cr12Mov,
                             Hardening HRC 58-62℃
                             Length Tolerance:3m±1.0mm
5 PLC control system Adopted PLC, transducer, touch panel to ensure high speed with stability, precision and lifetime
Other electric element is Schneider
Equipped with movable switch, air break, radiator, transformer & electric leakage protector, that element can make sure easy operation convenience and safety.
Brand: Delta Taiwan brand
6 Hydraulic system Hydraulic motor Power: 3kw
Hydraulic oil: 46#
Hydraulic pressure: 12 Mpa
Brand: Chinese famous brand.
Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.
7 Runout table It adopts welded steel and supported roller to transmit the products.
Quantity:1 sets
8 Spare parts 1. easy damaged parts: conk 2 pcs, fuse-link 4 pcs
2. rubber mat 1 pcs;
3. bolt spanner 1 pcs
If you want to know more information about this machine, please contact us at any time. Or please pay more attention to our knowledge base, we will updater information now and then.
