Ceiling or drywall participation machine

50, 75, 100 drywall light keel roll forming machine

Product Details

50, 75, 100 drywall light keel roll forming machine could be used to make many types drywall building needed elements.

What 50, 75, 100 do refer to?

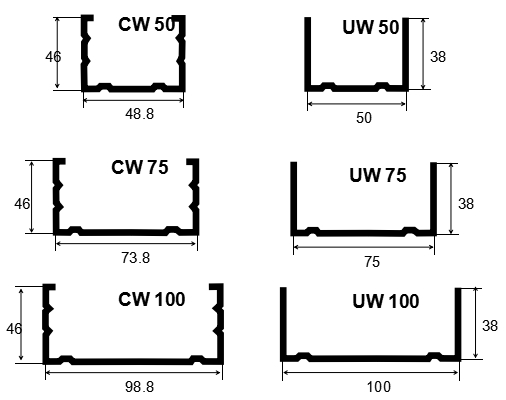

Here are some drawing profiles of 50, 75, and 100 for your reference;

When you need to add knurling as following photos, we can also make for you.

Here are some basic inforamtion of the 50, 75, and 100 drywall light keel roll forming machine:

Manual decoiler
1).Material coil inner diameter: 500mm-600mm
2).Max coil width: 600mm
3).Carrying capacity: 1500kg
Main Roll Forming Machine system:
1).Shaft material:45# steel,
outer diameter:50mm
2). Roller material:GCR12Mov
3).Number of forming steps:11steps
4).Main electrical power: 5.5 KW
5).Forming speed: 25m/min
6).Transport:by gear
7).Voltage: 380v 50hz 3phase
Hydraulic cutter and punching if need
2).Blade and mold material: Cr12 steel with
quenched treated 60-62℃
3).Cutting system: advanced hydraulic drive,
automatic cutting after forming,no distorting
or wasting,high level safety factor,will not stop the machine
to ensure the speed of cutting.
Here is one sample of punching effect:

By this one machine, nearly you can finish all the drywall building work. For showing how to do installation, here are some pictures for your reference:

For the drywall light keel roll forming machine, if you want to know more information, please contact us at any time.
