Automatic 700 shutter doors making machine

Automatic 700 shutter doors making machine

How it works: 700 Automatic shutter doors machine products for a variety of industrial plants, warehouses and other roofing production has a high peak, high strength advantage, lap install safe, reliable, waterproof and anti-riot units and strong performance characteristics, the aircraft production pressure plate to solve the problems of the conventional series of roof leakage pressure plate. bagging machine can be made with no beam vaulted roof.
Optional equipment ordinary discharge, hydraulic discharge machine.
(1) This device uses a high level of color steel automatic control software, production information management.
(2) the entire unit automation control system uses a highly integrated network, automation systems and better performance.
(3) Automatic shutter doors machine 700 also has the operation, maintenance, service and commissioning of machinery, molds advantages of easy replacement.

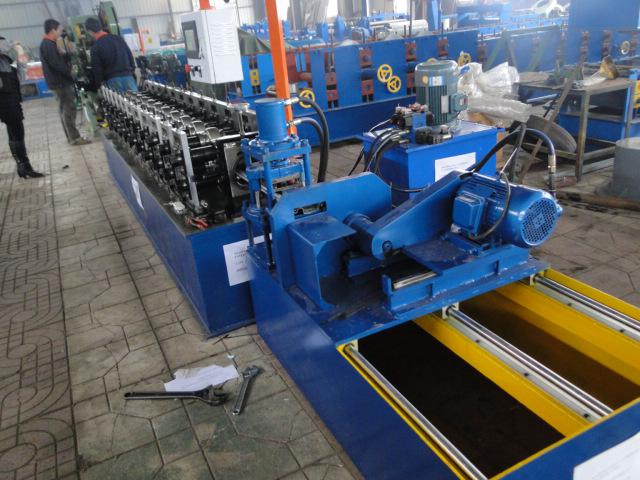

automatic shutter doors making machine
700 Automatic shutter doors machine technical parameters:
Equipment Total length: 10m width 1.3m height 1.8m
Motor power: 5.5Kw + 3Kw voltage 380V
Production speed: 8 - 10 m / min
Transmission: chain drive
Molding machine axis: 700 22 row axis. Large frame: 250H steel, upright plate 12mm
Shaft material: 45 # steel
Wheel Material: 45 # steel hard chrome plating
Forming part: Seiko-type wheel rotational molding, forming a good effect, reducing the friction between the wheels and raw materials, debugging convenient, fast.
CNC system: PLC panel, KEL-320 display
Counter: the use of domestic optical rotary encoder, A40S6-600-2-12-ACP
Cut: 3Kw Pumping Station

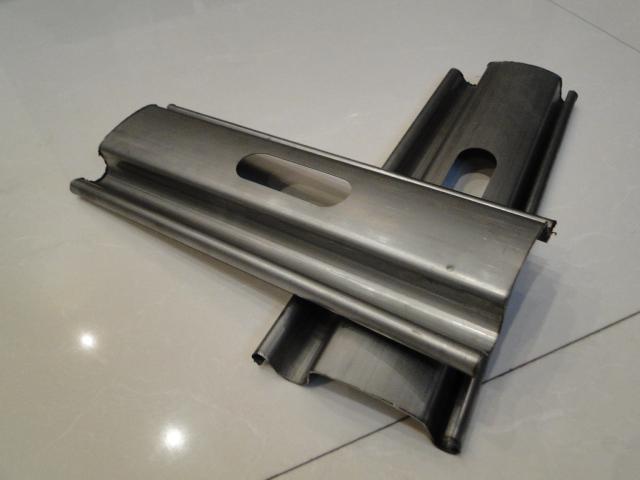

automatic shutter doors making machine


We also can improve Shutter door U Channel roll forming machine for you .If you want to know this automatic shutter doors making machine you can contact us with email.
