POP Channel Roll Forming Machine

Pop Sheet Roll Forming Machine

Gurukrupa Industries manufacturing best quality POP Sheet Channel Roll Forming Machine in India also exporting worldwide. Most advanced yet simplest design and robust structure ensures precise performance, easy operation and higher efficiency. These machines are available with 'manually' as well as 'automatically control' panel.
D coiler 5 ton cap.
Entry Gate with
Roll Forming Line with 18 stations, 10 H.P. electrical.
Control Panel semi auto
Cutting Unit (Hydro.)

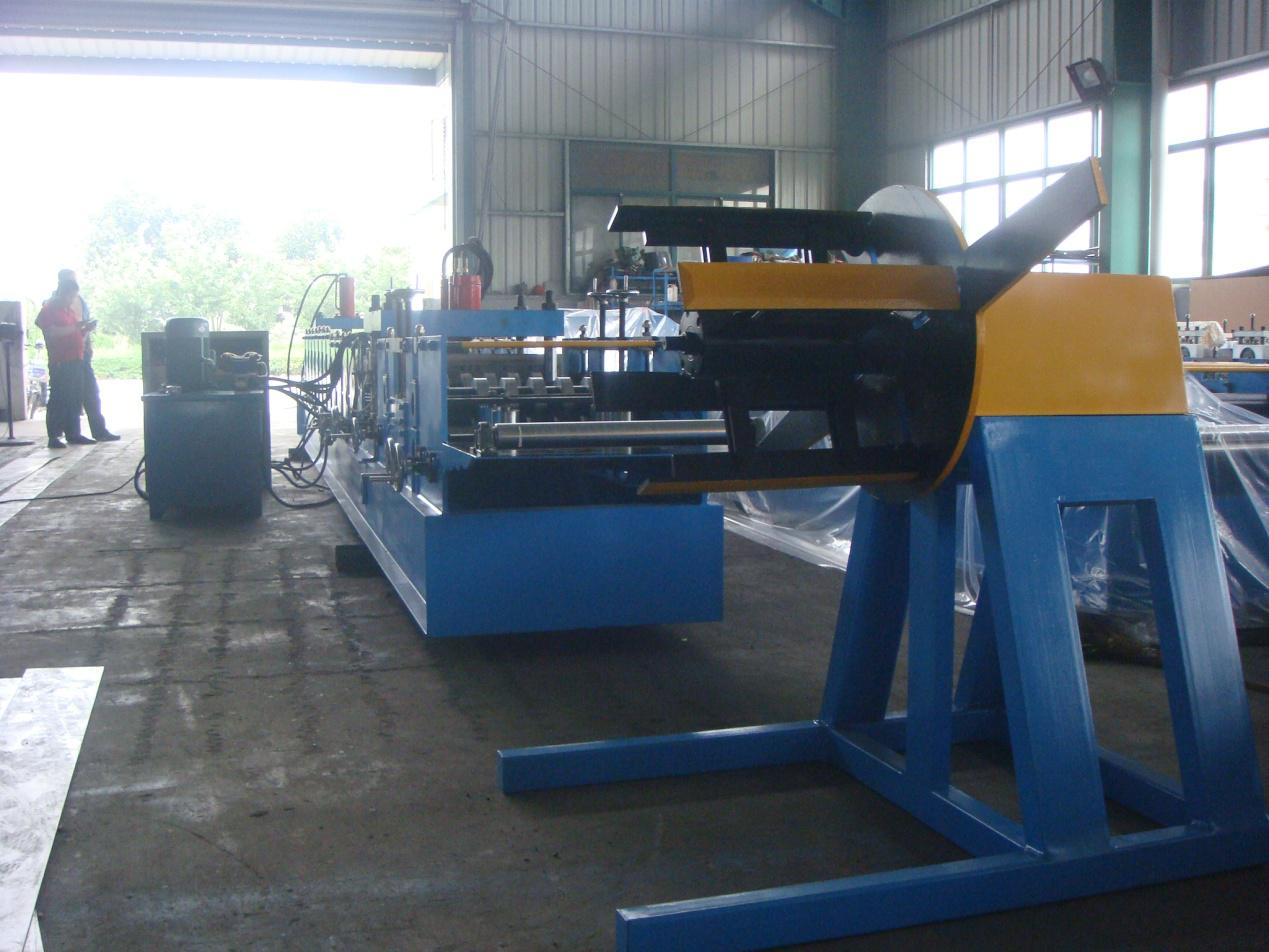

z purline roll forming machine
Technical Specifications
Maximum sheet width that can be formed : 1250 mm
Maximum sheet thickness in CRCA Strips that can be formed : 1.2 mm
Horizontal distance between shafts : 500mm
Number of forming stations : 16 nos.
Total HP for Line : 8
Speed of the machine : 10 -14 mt / mint
Size of machine : 9500 x 1700 x 1100 mm
Mandrel Uncoiler
Coil weight : 5 MT Max
Coil width : 1250 MM
Coil bore : 450 MM min, 510 MM max dia.
Mandrel movement : Manually adjusted
Back Tension : Manually adjusted
Entry Gate
Entry gate will be provided for movement of sheet to roll former.
Main Base
the main base is MS fabricated structure and adequately ribbed to minimize the distortion. It is accurately machined on top and bottom surfaces the threaded holes are made on the bed for positioning the stands.
Mill stands (Station)
The stands are mounted on the bed of the machine the line alignment can be easily done due to guide ways arranged on the bed of the machine. Each forming head consists of a fixed housing and sliding type out board housing. The mill stands will be arranged to locate shafts mounted on taper bearings. For the top shafts the bearings are housed in the cartridge type bearing blocks. The bottom shaft bearings are located in the bored machined in the housings. The bottom arbors are fixed in position whereas the top arbors along with cartridge blocks could be raised or lowered in vertical guides machined in housings.
