Shutter door slat roll forming machine

Shutter door slat roll forming machine
The door slat made by the shutter door slat cold roll forming machinery.
The roller shutter door being connected by the shutter door slats.We can produce all types shutter slat roll forming machine. We can custom made the slat roll forming machine according to customer’s requirement.
Our shutter slat roll forming machine use the Pillar stand frame, can produce differenct door slats in one roll forming machine,realized by change the moulds.


Here the machine pictures for you reference:

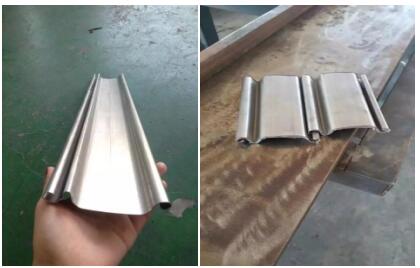

Finished product of door slat:

The component of shutter slat roll forming machine:

3T Manual De-coiler :
Usage:Support the raw material and open the raw material and help the raw material into the machine.
Supporting Weight:3T
Inner diameter:450-550mm

Raw material feeding:
Usage:It is used to level the steel coil and guide the coil into the forming machine system.

Main forming machine (Pictures are just for your reference):
a.Number of forming steps: 12 stations
b. Shaft material: 45# steel with quenched
treatment, precision machined,
The diameter: ¢50mm
c. Roller material: bearing steel with
quenched treatment
d. Transport: by gear
e. Forming speed: 5-10m/min
g.Voltage:380v, 50Hz,3 phase
h. Structure: independent stand
i.Size of machine:4.5m *0.8m *1.2m


The cutting system(The machine pictures just be for reference):
The material of blade: Cr12Mov, Hardening HRC 58-62℃
Length Tolerance:3m±1.5mm

Hydraulic stations:
Hydraulic motor Power: 3kw
Hydraulic oil: 46#
Hydraulic pressure : 12Mpa
Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.
