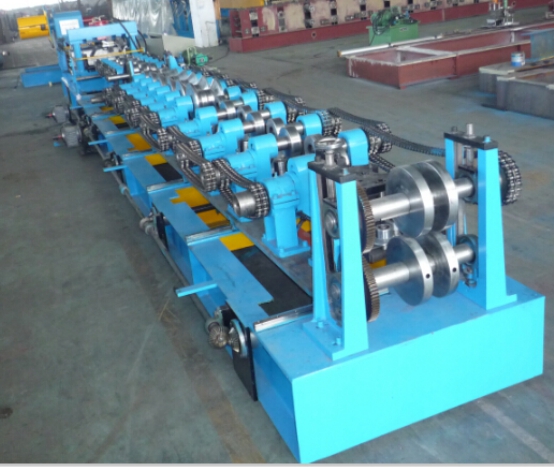

Automatic C80-300C steel machine equipment

Automatic C80-300C steel machine equipment

1. Automatic C80-300C steel machine equipment configuration:
One arm coil discharge rack units, bearing 4T;
Wrap one set type inlet feed guide wheels automatically adjust the width according to the width of the material, automatic alignment;
Feed leveling one set;
CNC hydraulic punching one set, automatic control horizontal and vertical pitch;
One set of hydraulic shears, automatic cut to length;
Forming host, one (hydraulic transmission), according to the part of the C-beam size requirements automatically adjust pressure mold;
PLC computer control system of one set, touch screen;
One set of hydraulic station;
Finished tray feeder three months;
One set of random tools;
user's Guide.

Automatic C80-300C steel machine equipment
2. Automatic C80-300C steel machine equipment technical parameters:
1. Size: 8000 * 1700 * 1650
2. Weight: 9T
3. Motor Power: 22kw
4. forming passes: 14 +5 Road Shaping
5. Roll speed: low speed 8m / min, speed 16m / min, high speed 25m / min
6. Effective Width: C80 x40-C300 x90mm
7. Roll Thickness: 1.2-3.0mm
8. Tolerance: ± 2mm
9. Roll Material: tool steel Gcr15, CNC machining after heat treatment to the hardness of 58-60, finishing / plating
10. Spindle material: 40Cr quenching 280-320HB, after finishing CNC

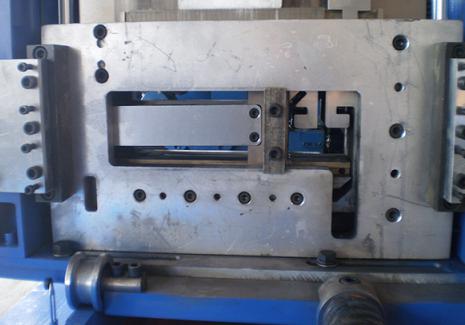

11. Cut System: Hydraulic shearing device
12. The molding material Scissors: Cr12MoV
13. The production of materials: Material Q235-Q345,
14. Machine Paint Colors: Blue

Automatic C80-300C steel machine equipment

3. Automatic C80-300C steel purposes:
Purlins, subject and medium-sized industrial civil buildings by the force structures, such as steel buildings, factories, warehouses, exhibition halls, theaters, stadiums, fairs trellis roof load and load-bearing wall flat support

4. Automatic C80-300C steel machine equipment Features:

Computer controlled, automatic change type, without manual exchange, C60-300 just one minute you can easily change any type, to achieve what you need to change the product type specifications into spout automatic adjustment, hydraulic punching automatic control horizontal and vertical pitch, cut to length, precision accuracy, pressure-type speed, no bell, every minute of the board 25-30m / min, saving labor costs, Increase productivity

If you wan to know more information about the 80-300 Broken C Purlines roll forming machine you can contact us with email  :  roofingmachine@zhongtuocn.com
