C Z purlin cold roll forming machine

C Z purlin cold roll forming machine  is a machine can produce many sizes. Generally, there are three types of machine, c purlin machine, z purlin roll forming machine, C Z section steel purlin machine. The Web width can be 80-300 mm Flange height can be 40-80 mm, it is adjustable from min to max. The size of holes can be design by customers. Let us show you a finished product to check.

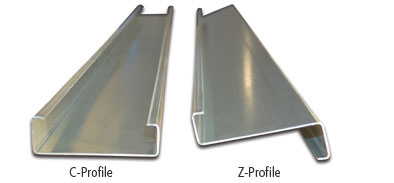

c z purlins
This C Z Used Roll Forming Machine consists of uncoiler,feeding and straightening,punching and cutting part, main roll forming part,cutting device and runout table. It is easy to operate and high safety. The Machine’s parts are all made with precision and experienced personals, with optimum quality roll tools so you never have to worry about the quality. The Roll tools are carved in highly precise CNC machines which gives it best quality and long life as we say “Quality & Service are the main ingredients of our Machines”.  The drawing profile is like the followings.




Working flow of this machine

Decoiler-- Roll Forming--PLC System—Hydraulic System –Pressing --Cutting —Output Table




Length of the main part 6800mm*800mm*1200mm
Weight of main part 7.2 tons
Voltage 380V  50HZ 3Phase
Frame 400 H steel
Drive mode differential gear
Main axle material GR15
Material of shafts 45# steel
Diameter of shafts φ80mm
Number of rollers 16 rollers
Main power 15kw(cycloidal planetary gear speed reducer)
Forming speed 8m-10m/min
Adjustment method Half seams type Looper
