High quality cantilever type cable tray roll forming machine

High quality cantilever type cable tray roll forming machine

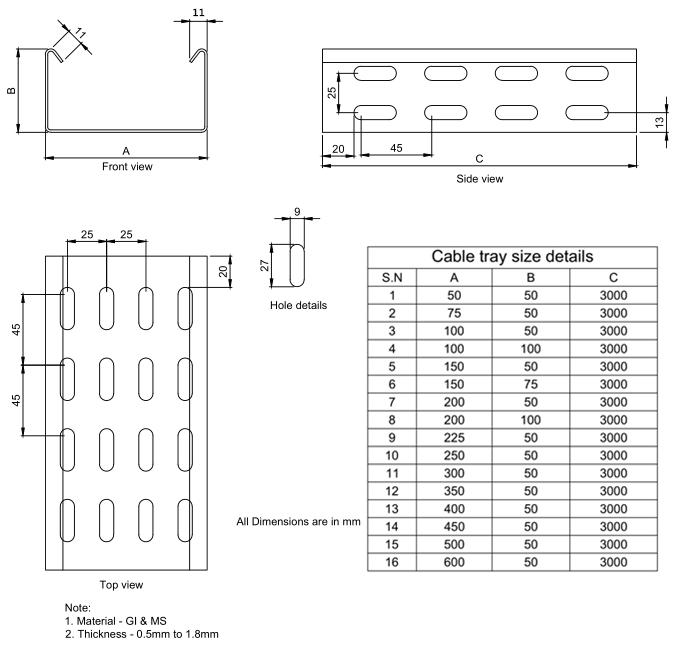

This cable tray roll forming machine may produce the cable tray, the different sizes through the replace punching moulds to complete. Forming machine is combined and adjustable, one set of combined rollers complete all cable tray products, the change size through adjust distance of rollers to complete.


Automatic inner tight decoiler ◊ coil inner diameter 450mm-550mm
◊ maximum width of coiling600mm
◊ maximum weight of loading 2500kg
Main forming machine ◊ a. number of forming steps 11rows
◊ material of shaft 45# steel . Outer diameter 60mm
◊ main motor power: 5.5kw
◊ The speed of forming: 0-50m/min
Hydraulic cutter ◊ material of blade:Cr12 mould steel with quenched treatment 60-62
◊ cutting system :adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting , high safe factor.(tracking cutting)
The electrical control system ◊ The Brand of display: DELTA
◊ The main computer (PLC): DELTA DVP14
Hydraulic system ◊ Adopting advanced hydraulic system of Tai Wan
◊ Power:3kw
The equipments coating , package ◊ the coating adopt international general shade-guide
◊ The package :simple waterproof package


Why choose us?
1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 13 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
