China rolling shutter slats steel door making machine

China rolling shutter slats steel door making machine

Rolling shutter doors are connected in series with a multi-joint movable door. In a fixed slide, the upper and lower doors are rotated around the door's upper reel. Rolling shutter doors are often widely used in shops. In the followings, i will show you more information about rollling shutter door machine.
 Working flow of Rolling shutter door machine :

Decoiler-----feeding------roll forming ------ punching-----cutting----output table

China rolling shutter slats steel door making machine components:

No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Punching device 1Set
4. Hydraulic Cutting Device 1 Set
5. PLC Control Box 1 Set
6. Output table 1 Set

China rolling shutter slats steel door making machine Technical Parameters

Material specification Galvanized and pre-painted galvanized steel.
Thickness 0.8 mm to1.2 mm.
Main motor power 5.5 kw.
Hydraulic station power 3 kw.
Feeding width 124mm.
Cover width 60mm.
Yield stress 235Mpa(33KSI) ~ 345Mpa (50KSI).
Roll forming Speed  20 m/minute.
Cutting Tolerance ±2mm
Manual Uncoiler Max. Capacity: 5000kgs.
Voltage As per customer’s request.
Numbers of stands 11 stands/stations/pairs.
Roller material 5# steel polished and coated with chrome HRC55-60°
Shaft diameter 70mm
Shaft diameter high grade No.45 steel after treatment
Type of cutting Roll-formed and length-set profile cutting.

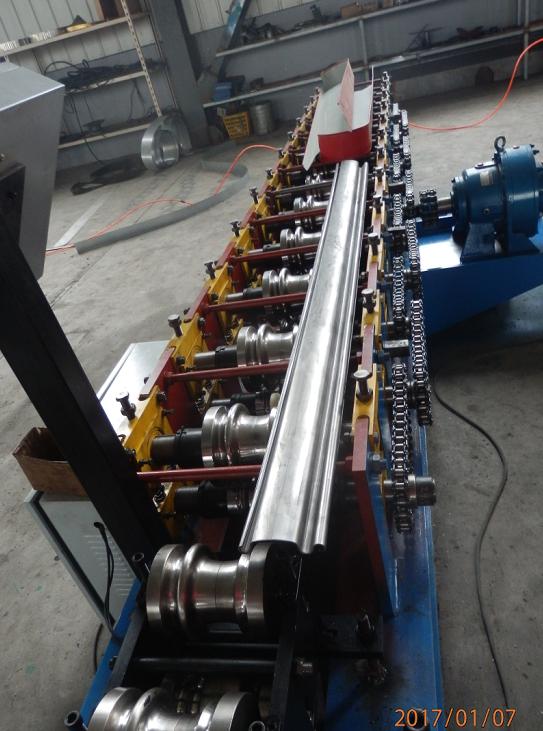

rolling shutter slats steel door making machine
