C/Z Shape Changeable Purlin Production Line

C/Z Shape Changeable Purlin Production Line

C or Z shape purlins are made from hot/cold rolled steel strips,and straightened,hole punched,cut to length,and roll formed by WLPM series C/Z changeable shape purlin roll forming machine. Through changing, this product line can make the change of the shape C or Z purlin,besides change different size of C or Z shape purlin,This change for shape and sizes of C/Z purlin can be realized by automatic mode,or manual adjusting mode.
WLPM series C/Z shape purlin product line consists of uncoiling system,straightening system,hole punching system,shearing system,roll forming system,products support table,hydraulic system,automatic controlling system,and so on. It’s a high efficiency equipment of making purlin,which is suitable for current enterprises.

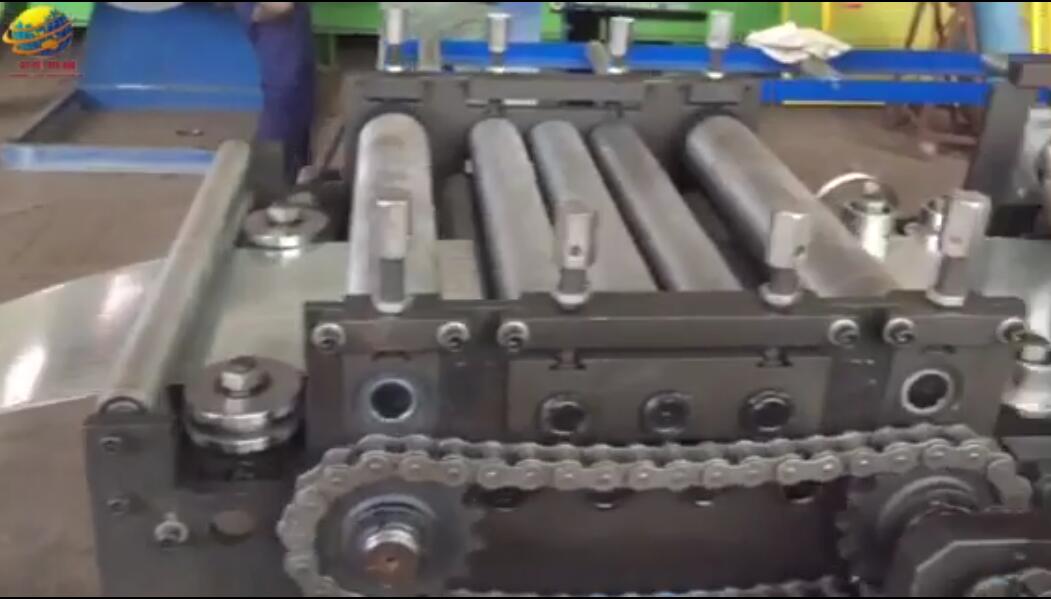

C/Z Shape Changeable Purlin Production Line

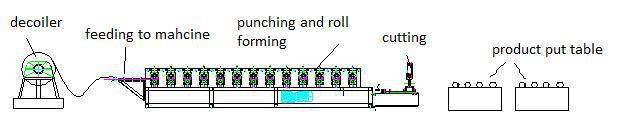

Working Flow :
Uncoiling-Sheet Guiding-Straightening&Levelling-Hole Punching-Measuring Length&shearing-Roll Forming-Sheet to support table

C/Z Shape Changeable Purlin Production Line
Main Technical Parameters:

Item Parameters
Profile  C and Z purin
Material Type Steel strip
Thickness (mm) 1.0-3.2 1.0-3.0
Yield Stress(Mpa) 230-300 300-350
Max.Forming speed(m/min) 16-18
Roller Material D2
Roller driven type Hydraulic motor driven
Controller PLC
Operation  Touch screen and button
Hydraulic system pressure(MPA) 25
Hydraulic station motor power(KW) 7.5
Total power(kw) 30
Total weight(kg)  about 12000

C/Z Shape Changeable Purlin Production Line



If you want to buy the Fully automatic Interchange C/Z purlin roll forming machine you can contact us with email  roofingmachine@zhongtuocn.com
