Gutter roll forming machine

Gutter roll forming machine
Introduction
The color steel rain gutter made by the roll forming machine.It is use for drain the rains.The finished products have many features, such as good interlocking,no leak,beautiful integrity,longtime using and so on. Color coated steel gutter is widely used in workshop,warehouse,hangar,gym,and so on for inductry and cicil buildings.
Machine pictures:

gutter-roll-forming-machine
Here are some simple gutter drawings for you reference:
gutter-roll-forming-machine-1

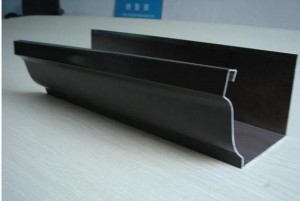

Finished product made by our machine:
gutter-roll-forming-machine-2
Working Flow
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting→Products receiving

corrugated-roll-forming-machine-3
Components of production line

No. Name Unit Qty
1 Manual decoiler set 1
2 Main forming machine set 1
3 PLC control system set 1
4 Hydraulic pump station set 1
5 Post cut set 1
6 Electric motor set 1
7 Output table set 1

Un-coiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Loading capacity Uncoiling width Inner diameter
5 T 1250 mm 450-550 mm

corrugated-roll-forming-machine-4

Coil feeding part

Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

gutter-roll-forming-machine-3

Forming device

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working

gutter-roll-forming-machine-4

Feature : Ensure stability , precision and lifetime.

No.                    Main parameter
1  Length of the main part  7500 х 650 х 1450 mm
2  Weight of main part  2.5 t
3  Voltage  380 V/ 50 HZ 3 Phase (as customer’s request)
4  Roller fixer  Middle plate welded
5  Frame  350 H steel welded
6  Frame thickness  30mm
7  Drive mode  Chain
8  Material of rollers  45# steel, surface hard chromium plating.
9  Material of shafts  45# steel
10  Diameter of shafts  Φ 60 mm
11  Number of rollers  15rollers
14  Main power  3 kw

Cutting device

Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.

(include cutting tools, hydraulic tank, cutter machine)

Blade Material Cutting system
Cr12 quenched Full automatic



gutter-roll-forming-machine-5Counter

One counter gauges length, pulses, and decides length. Omron encoder for length measurement.

Products receiving tables

It adopts welded steel and supported roller to transmit the products.
3*0.9*0.6m

Controlling device

1.Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with

stability, precision and lifetime.

2.Other electric element are Delta

3.Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

Screen

PLC

Text screen displayer

Taida DVP14ES from Taiwan

Hydraulic

(include a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves )

Orgin

Power

Advanced hydraulic system from Taiwan

3 kw
