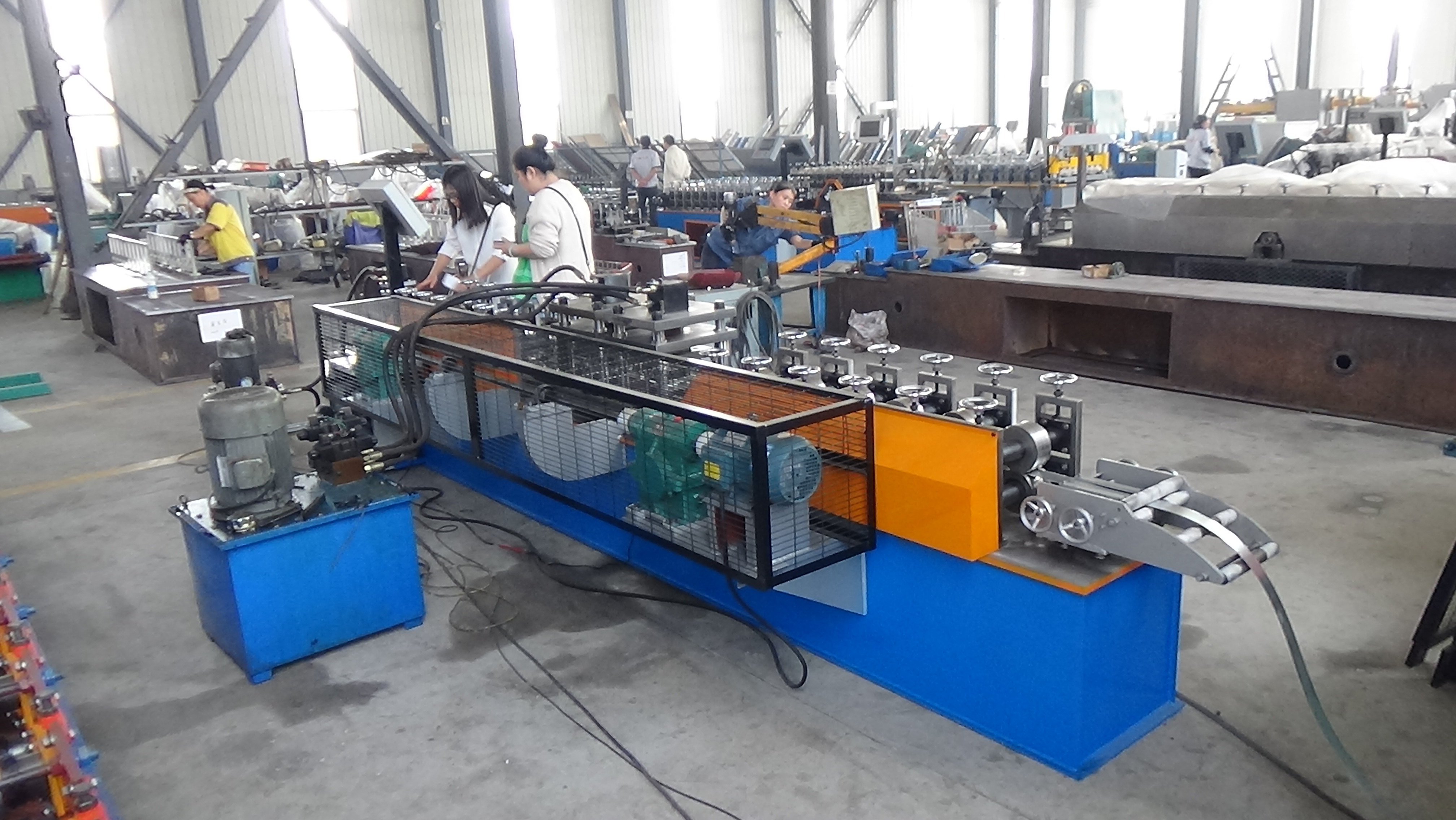

Z Purlin roll forming machine

Z Purlin roll forming machine

We are engaged in providing a wide array of  Z Purlin Machine that is prepared using exceptional grade raw material and the state-of-the-art machinery in tune with the set international standards. The offered machine is thoroughly examined against various parameters under the stern vigilance of our adroit professionals to ensure the optimum quality. In addition to this, this machine is available in various specifications in order to meet diverse demands of our clients.

Z Purlin roll forming machine

Technical Specifications

Maximum sheet width that can be formed : 450mm

Maximum sheet thickness in CRCA Strips that can be formed : 2 mm(M.S.)

Horizontal distance between shafts : 400mm

Number of forming stations : 14 nos.

Vertical station : 12 nos.

Total HP for Line : 16

Speed of the machine : 4mt/minit

Size of machine : 6300 x 1200 x 1000 mm

Z Purlin roll forming machine

Mandrel Uncoiler

Coil weight : 2 MT Max

Coil width : 400 MM

Coil bore : 450 MM min, 510 MM max dia

Mandrel movement : Manually adjusted

Back Tension : Manually adjusted

Punching press

20 tone power press

2 nos. 3 HP

Entry Gate

Entry gate will be provided for movement of sheet to roll former.

Main Base

The main base is MS fabricated structure and adequately ribbed to minimize the distortion. It is accurately machined on top and bottom surfaces the threaded holes are made on the bed for positioning the stands.

Mill stands (Station)

The stands are mounted on the bed of the machine the line alignment can be easily done due to guide ways arranged on the bed of the machine. Each forming head consists of a fixed housing and sliding type out board housing. The mill stands will be arranged to locate shafts mounted on taper bearings. For the top shafts the bearings are housed in the cartridge type bearing blocks. The bottom shaft bearings are located in the bored machined in the housings. The bottom arbors are fixed in position whereas the top arbors along with cartridge blocks could be raised or lowered in vertical guides machined in housings.
