1.5 to 2.0mm C Purline and U channel Machine

C purline and U channel is quite popular in modern construction area. Light steel keel machine makes ceiling skeleton. That is, we often see the ceiling, especially the shape of the ceiling, are made of light steel keel frame, and then covered with gypsum board made of. The light steel keel ceiling is divided into the upper light steel keel ceiling and the light steel keel ceiling. Take the following drawing profile of C purline and U channel machine and then you will understand:

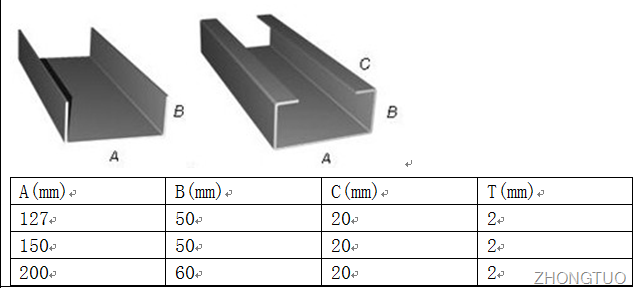

C U channel drawing profile

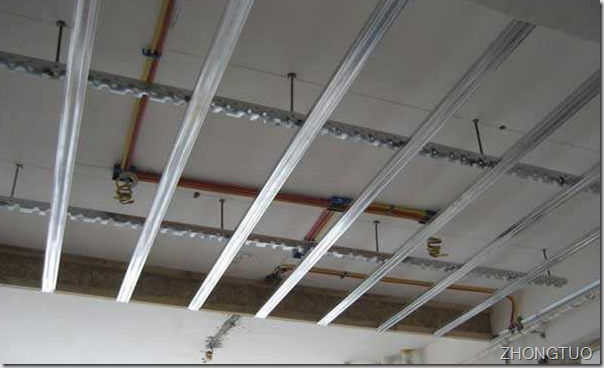

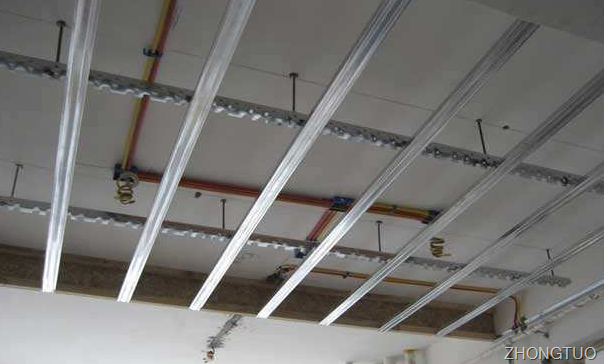

C U channel in ceiling

Normally many sizes could be made by one machine. There are two method which you can choose. One is using the manual spacer to adjust size. This type price is lower but you need to know how to do the adjusting.  For the linear machine you can use to adjust sizes. This type you can adjust the sizes through PLC. It is easier but price is a little higher. Here are some pictures for your reference:

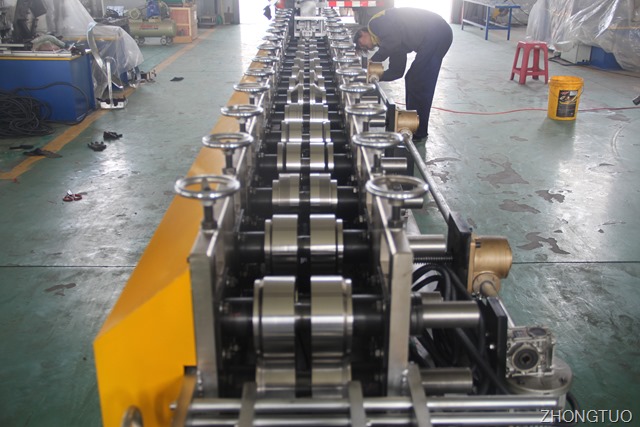

c purline and u channel machine

The above picture is about the manual version. This type you need to adjust the spacer to make different sizes. In the following part, I will show you the fully automatic linear type.

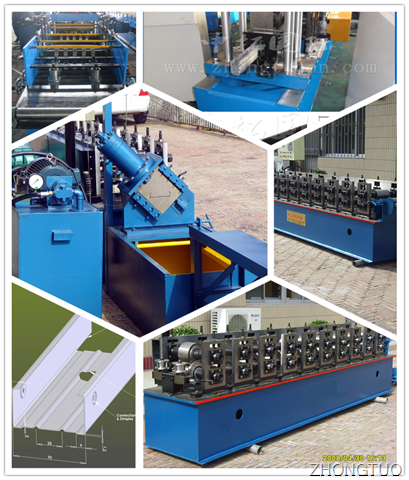

Linear machine

The right part of the machine frame could be linear easily by PLC, so you can make the C channel and u track easily.

For those two types  C purline machine, U channel machine, if you need to know more information, please contact us at any time.
