Slitting cutter roller machine
Slitting cutter roller machine
The slitting cutter roller machine is used for slitting the steel coil to be small strips with automatic control panel. The features we have is fast speed, high precise, stable performance and easy to operate
The working flow :

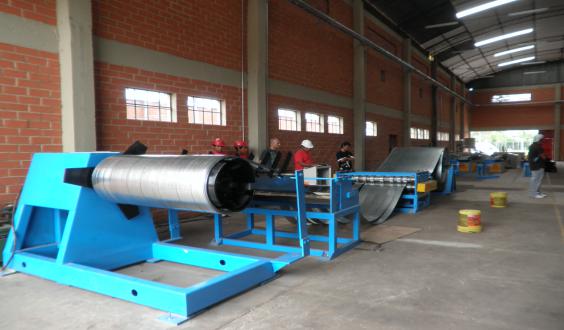

Decoiling ---------slitting--------- extension-------recoiler--------unload
Components:
|
Configurations |
5Tons Hydraulic decoiler | 1 set |
Standard Configuration |
|
| Guiding device | 1 set | |||
| Main slitting machine | 1 set | |||
| Cutting device | 1 set | |||
| Extension device | 1set | |||
| Recoiler device | 1 set |
Technical parameters:
| decoiler | Max coil weight | 5ton | |
| Inner diameter | 508mm | ||
| Max out diameter | 1200mm | ||
|

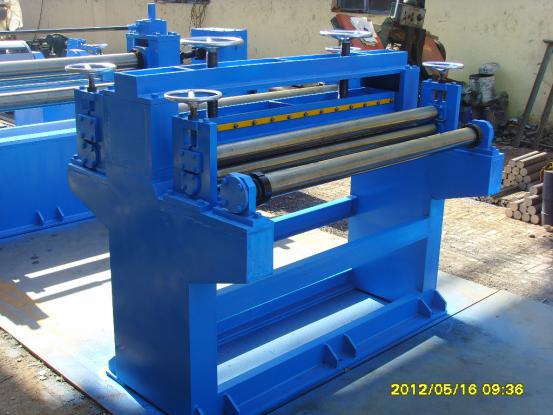

Slitting device |
Slitting speed | 0-15m/min | |
| Driving motor | 2.2kw | ||
| Slitting shaft diameter | Ф100mm | ||
| Max slitting pieces | 10 pieces | ||
| Shearing blade material | 12CrMoV | ||
| Pinching roller | 2 couples | ||
|
Cutting device |
Cutting speed | 4-5pcs/min(2000mm per pc) | |
| Cutting thickness | 0.3-0.8mm | ||
| Cutting length | 500-4000mm | ||
| Cutting station power | 3kw | ||

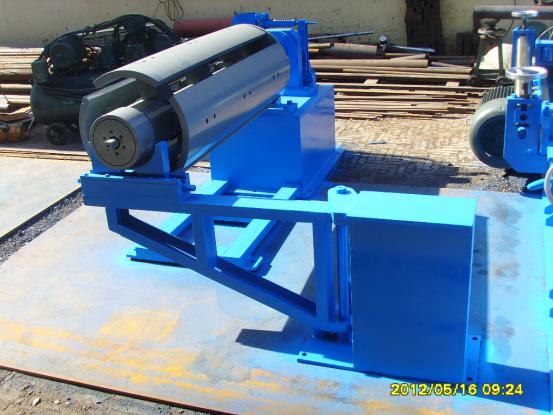

| Recoiler system | Max coil weight | 5ton | |
| Max out diameter | 1250mm | ||
| Recoiler motor | 5.5kw | ||
| Recoiler speed | 0-15m/min |
